AFS1217-White light-24V
- Model
- AFS1217-White light-24V
- Voltage
- DC24V
- Power
- 10W/M
- Lumen Output
- 650LM/m
Architectural Neon
AF Series
户外高耐候性霓虹，-40~+60℃，IP67
76Models
OEM / ODMProject Support
Series Overview
This product series has been added to the Huinergy LED catalogue. Contact our engineering team for available models, installation solutions, drawings and technical documentation.
Project Support
- Project-specific specification and configuration review
- Selection and installation documentation support
- OEM / ODM project consultation
PRODUCT MODELS
Models & Technical Information
76 available models imported for this series.

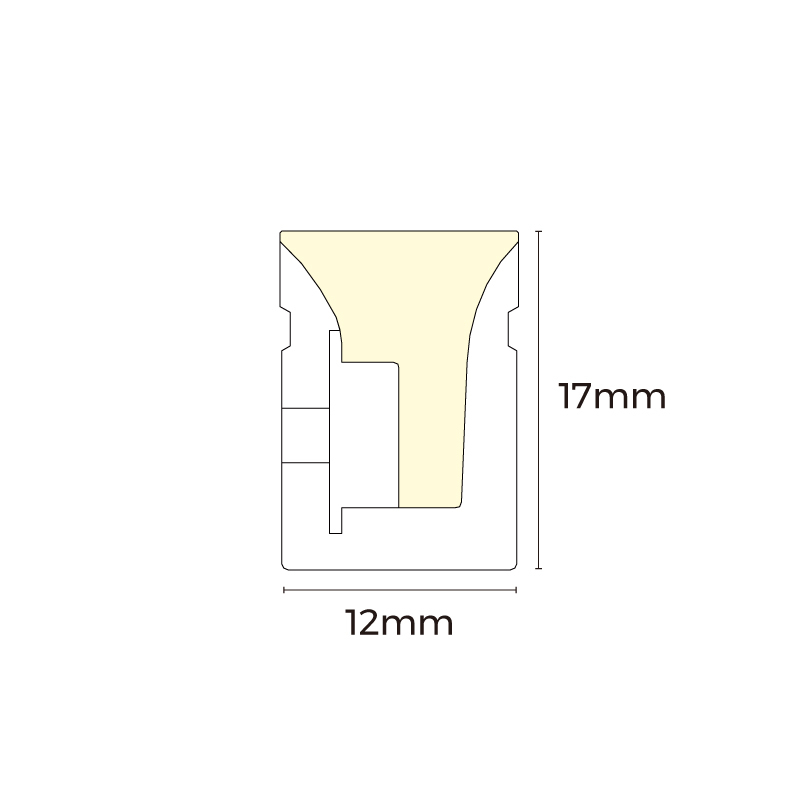

AFS1217-White light-48V
- Model
- AFS1217-White light-48V
- Voltage
- DC48V
- Power
- 10W/M
- Lumen Output
- 625LM/m
View configuration options
AFS1217-Color light-24V
- Model
- AFS1217-Color light-24V
- Voltage
- DC24V
- Power
- 10W/M
- Lumen Output
- /
View configuration options
AFS1217-RGB-24V
- Model
- AFS1217-RGB-24V
- Voltage
- DC24V
- Power
- 12W/M
- Lumen Output
- 210LM/m
View configuration options
AFS1217-RGBW-24V
- Model
- AFS1217-RGBW-24V
- Voltage
- DC24V
- Power
- 12W/M
- Lumen Output
- 125LM/m
View configuration options
AFS1217-DMX512 White neon light-24V
- Model
- AFS1217-DMX512 White neon light-24V
- Voltage
- DC24V
- Power
- 13.5W/M
- Lumen Output
- 370LM/m
View configuration options
AFS1217-DMX512 RGB neon light-24V
- Model
- AFS1217-DMX512 RGB neon light-24V
- Voltage
- DC24V
- Power
- 13.5W/M
- Lumen Output
- 190LM/m
View configuration options
AFS1217-DMX512 RGBW neon light-24V
- Model
- AFS1217-DMX512 RGBW neon light-24V
- Voltage
- DC24V
- Power
- 16.5W/M
- Lumen Output
- 120LM/m
View configuration options

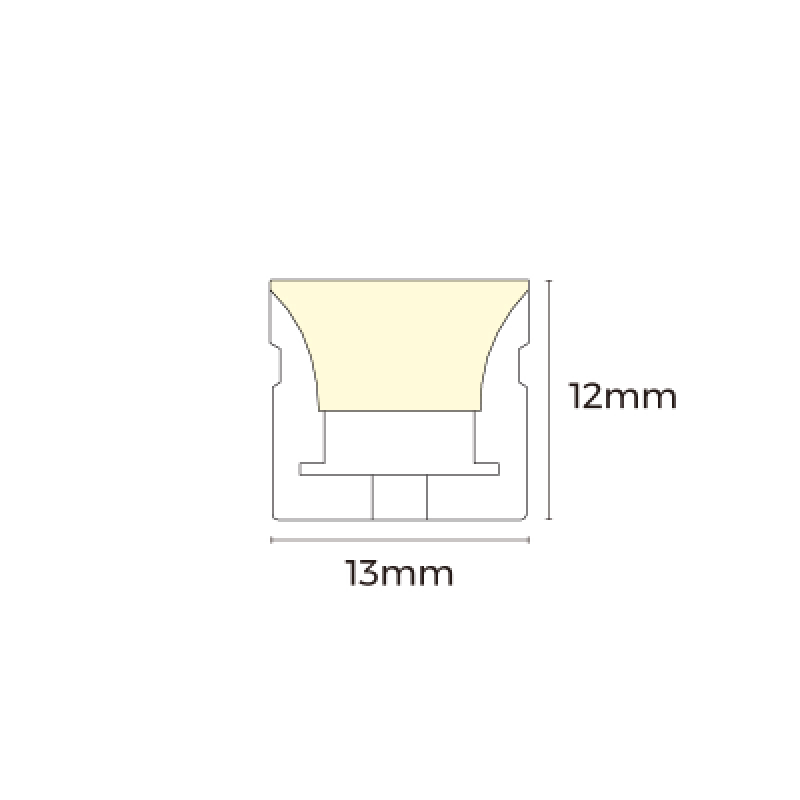

AFT1312-White light-24V
- Model
- AFT1312-White light-24V
- Voltage
- DC24V
- Power
- 10W/M
- Lumen Output
- 860LM/m
View configuration options

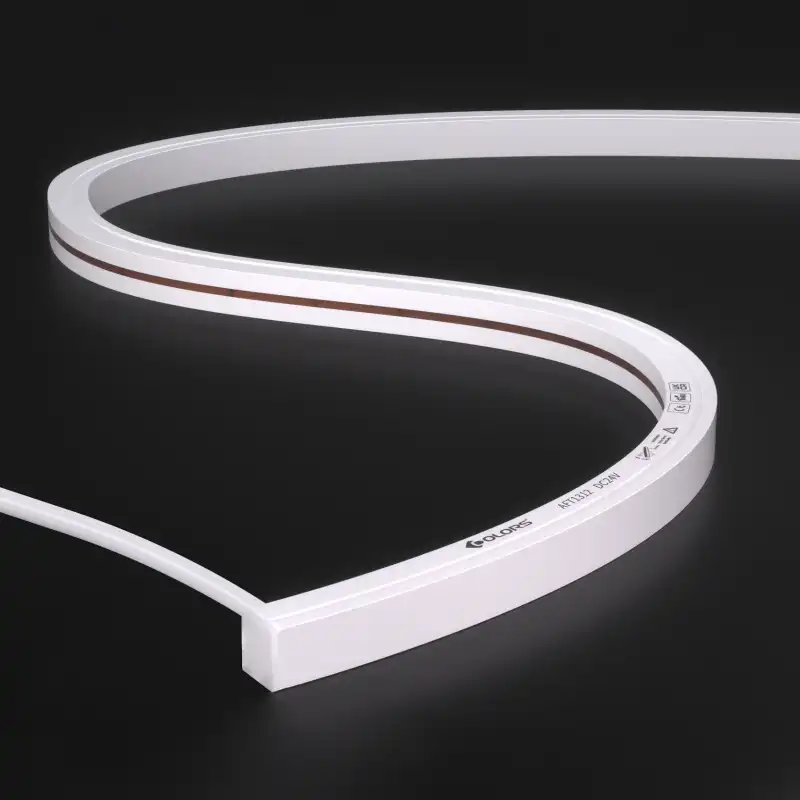

AFT1312-White light-48V
- Model
- AFT1312-White light-48V
- Voltage
- DC48V
- Power
- 10W/M
- Lumen Output
- 800LM/m
View configuration options
AFT1312-Color light-24V
- Model
- AFT1312-Color light-24V
- Voltage
- DC24V
- Power
- 10W/M
- Lumen Output
- /
View configuration options
AFT1312-RGB-24V
- Model
- AFT1312-RGB-24V
- Voltage
- DC24V
- Power
- 12W/M
- Lumen Output
- 305LM/m
View configuration options
AFT1312-RGBW-24V
- Model
- AFT1312-RGBW-24V
- Voltage
- DC24V
- Power
- 12W/M
- Lumen Output
- 140LM/m
View configuration options
AFT1312-DMX512 White neon light-24V
- Model
- AFT1312-DMX512 White neon light-24V
- Voltage
- DC24V
- Power
- 13.5W/M
- Lumen Output
- 510LM/m
View configuration options
AFT1312-DMX512 RGB neon light-24V
- Model
- AFT1312-DMX512 RGB neon light-24V
- Voltage
- DC24V
- Power
- 13.5W/M
- Lumen Output
- 270LM/m
View configuration options
AFT1312-DMX512 RGBW neon light-24V
- Model
- AFT1312-DMX512 RGBW neon light-24V
- Voltage
- DC24V
- Power
- 16.5W/M
- Lumen Output
- 160LM/m
View configuration options

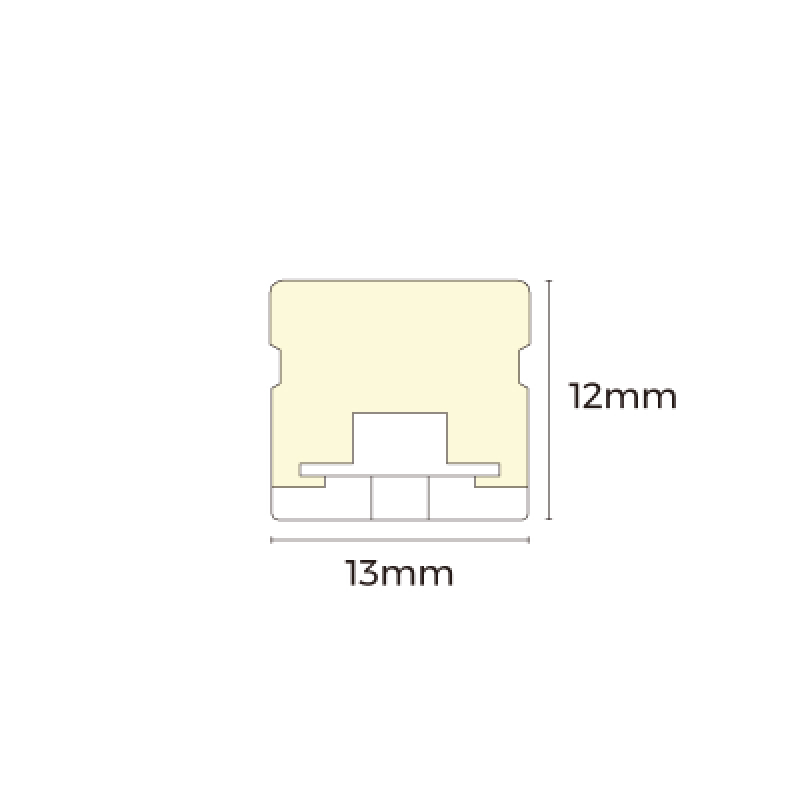

AFT1312U-White light-24V
- Model
- AFT1312U-White light-24V
- Voltage
- DC24V
- Power
- 10W/M
- Lumen Output
- 820LM/m
View configuration options
AFT1312U-Color light-24V
- Model
- AFT1312U-Color light-24V
- Voltage
- DC24V
- Power
- 10W/M
- Lumen Output
- /
View configuration options
AFS1616-White light-24V
- Model
- AFS1616-White light-24V
- Voltage
- DC24V
- Power
- 10W/M
- Lumen Output
- 660LM/m
View configuration options
AFS1616-White light-48V
- Model
- AFS1616-White light-48V
- Voltage
- DC48V
- Power
- 10W/M
- Lumen Output
- 670LM/m
View configuration options
AFS1616-Color light-24V
- Model
- AFS1616-Color light-24V
- Voltage
- DC24V
- Power
- 10W/M
- Lumen Output
- /
View configuration options
AFS1616-RGB-24V
- Model
- AFS1616-RGB-24V
- Voltage
- DC24V
- Power
- 12W/M
- Lumen Output
- 245LM/m
View configuration options
AFS1616-RGBW-24V
- Model
- AFS1616-RGBW-24V
- Voltage
- DC24V
- Power
- 12W/M
- Lumen Output
- 115LM/m
View configuration options

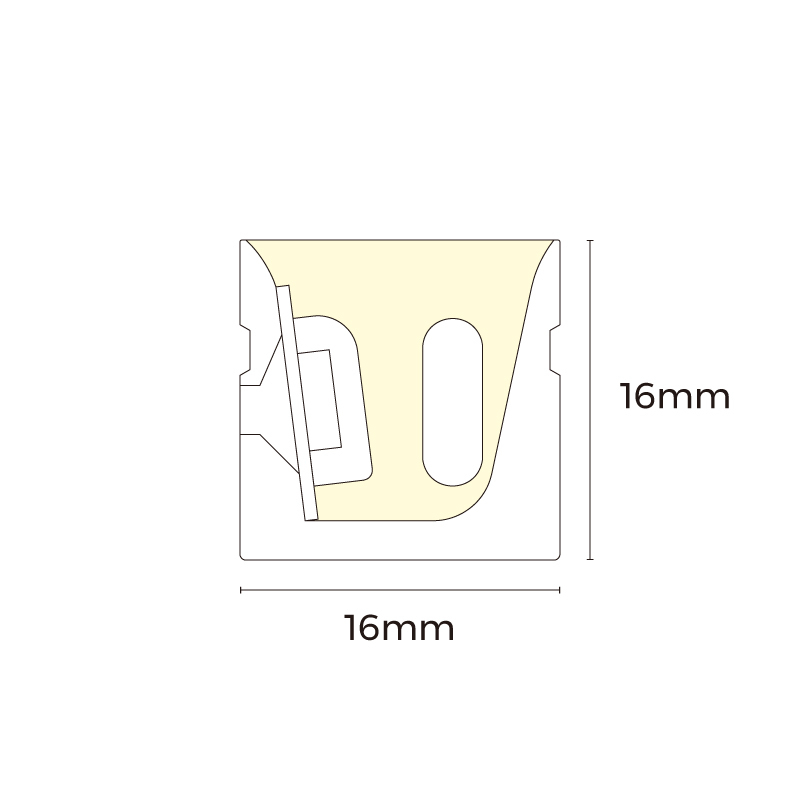

AFS1616-DMX512 White neon light-24V
- Model
- AFS1616-DMX512 White neon light-24V
- Voltage
- DC24V
- Power
- 13.5W/M
- Lumen Output
- 430LM/m
View configuration options
AFS1616-DMX512 RGB neon light-24V
- Model
- AFS1616-DMX512 RGB neon light-24V
- Voltage
- DC24V
- Power
- 13.5W/M
- Lumen Output
- 220LM/m
View configuration options
AFS1616-DMX512 RGBW neon light-24V
- Model
- AFS1616-DMX512 RGBW neon light-24V
- Voltage
- DC24V
- Power
- 16.5W/M
- Lumen Output
- 130LM/m
View configuration options

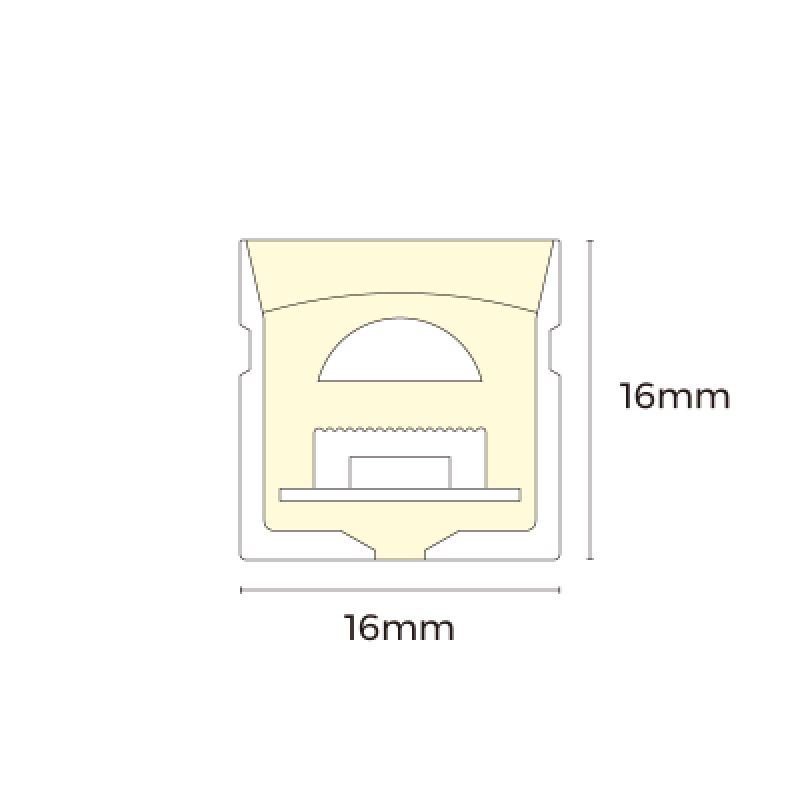

AFT1616-White light-24V
- Model
- AFT1616-White light-24V
- Voltage
- DC24V
- Power
- 10W/M
- Lumen Output
- 750LM/m
View configuration options
AFT1616-White light-48V
- Model
- AFT1616-White light-48V
- Voltage
- DC48V
- Power
- 10W/M
- Lumen Output
- 710LM/m
View configuration options
AFT1616-Color light-24V
- Model
- AFT1616-Color light-24V
- Voltage
- DC24V
- Power
- 10W/M
- Lumen Output
- /
View configuration options
AFT1616-RGB-24V
- Model
- AFT1616-RGB-24V
- Voltage
- DC24V
- Power
- 12W/M
- Lumen Output
- 245LM/m
View configuration options
AFT1616-RGBW-24V
- Model
- AFT1616-RGBW-24V
- Voltage
- DC24V
- Power
- 12W/M
- Lumen Output
- 120LM/m
View configuration options
AFT1616-DMX512 White neon light-24V
- Model
- AFT1616-DMX512 White neon light-24V
- Voltage
- DC24V
- Power
- 13.5W/M
- Lumen Output
- 480LM/m
View configuration options
AFT1616-DMX512 RGB neon light-24V
- Model
- AFT1616-DMX512 RGB neon light-24V
- Voltage
- DC24V
- Power
- 13.5W/M
- Lumen Output
- 230LM/m
View configuration options
AFT1616-DMX512 RGBW neon light-24V
- Model
- AFT1616-DMX512 RGBW neon light-24V
- Voltage
- DC24V
- Power
- 16.5W/M
- Lumen Output
- 140LM/m
View configuration options
AFT1615-White light-24V
- Model
- AFT1615-White light-24V
- Voltage
- DC24V
- Power
- 10W/M
- Lumen Output
- 820LM/m
View configuration options
AFT1615-Color light-24V
- Model
- AFT1615-Color light-24V
- Voltage
- DC24V
- Power
- 10W/M
- Lumen Output
- /
View configuration options
AFT1615-RGB-24V
- Model
- AFT1615-RGB-24V
- Voltage
- DC24V
- Power
- 12W/M
- Lumen Output
- 280LM/m
View configuration options
AFT1615-RGBW-24V
- Model
- AFT1615-RGBW-24V
- Voltage
- DC24V
- Power
- 12W/M
- Lumen Output
- 140LM/m
View configuration options
AFT1615-DMX512 White neon light-24V
- Model
- AFT1615-DMX512 White neon light-24V
- Voltage
- DC24V
- Power
- 13.5W/M
- Lumen Output
- 520LM/m
View configuration options
AFT1615-DMX512 RGB neon light-24V
- Model
- AFT1615-DMX512 RGB neon light-24V
- Voltage
- DC24V
- Power
- 13.5W/M
- Lumen Output
- 255LM/m
View configuration options

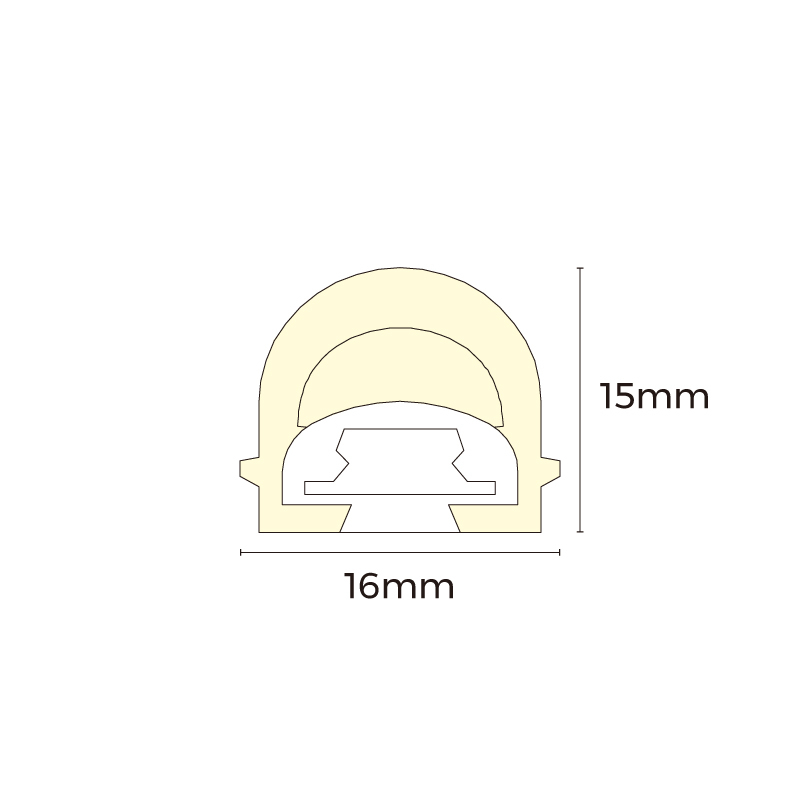

AFT1615-DMX512 RGBW neon light-24V
- Model
- AFT1615-DMX512 RGBW neon light-24V
- Voltage
- DC24V
- Power
- 16.5W/M
- Lumen Output
- 160LM/m
View configuration options
AFS2020-White light-24V
- Model
- AFS2020-White light-24V
- Voltage
- DC24V
- Power
- 10W/M
- Lumen Output
- 710LM/m
View configuration options
AFS2020-White light-48V
- Model
- AFS2020-White light-48V
- Voltage
- DC48V
- Power
- 10W/M
- Lumen Output
- 700LM/m
View configuration options
AFS2020-Color light-24V
- Model
- AFS2020-Color light-24V
- Voltage
- DC24V
- Power
- 10W/M
- Lumen Output
- /
View configuration options
AFS2020-RGB-24V
- Model
- AFS2020-RGB-24V
- Voltage
- DC24V
- Power
- 12W/M
- Lumen Output
- 245LM/m
View configuration options
AFS2020-RGBW-24V
- Model
- AFS2020-RGBW-24V
- Voltage
- DC24V
- Power
- 12W/M
- Lumen Output
- 120LM/m
View configuration options
AFS2020-DMX512 White neon light-24V
- Model
- AFS2020-DMX512 White neon light-24V
- Voltage
- DC24V
- Power
- 13.5W/M
- Lumen Output
- 440LM/m
View configuration options
AFS2020-DMX512 RGB neon light-24V
- Model
- AFS2020-DMX512 RGB neon light-24V
- Voltage
- DC24V
- Power
- 13.5W/M
- Lumen Output
- 230LM/m
View configuration options

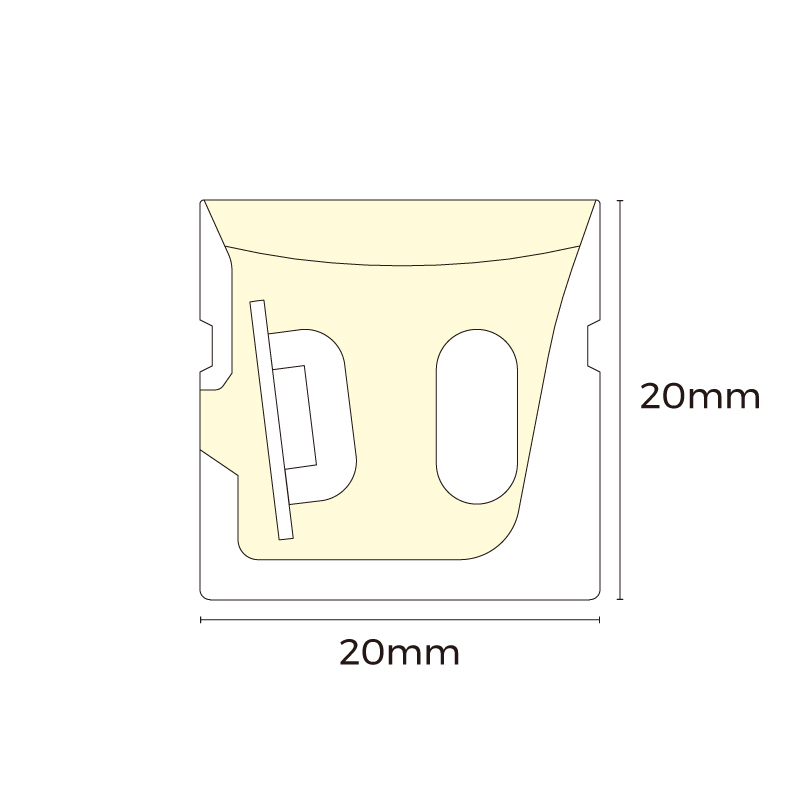

AFS2020-DMX512 RGBW neon light-24V
- Model
- AFS2020-DMX512 RGBW neon light-24V
- Voltage
- DC24V
- Power
- 16.5W/M
- Lumen Output
- 130LM/m
View configuration options
AFT2020-White light-24V
- Model
- AFT2020-White light-24V
- Voltage
- DC24V
- Power
- 10W/M
- Lumen Output
- 700LM/m
View configuration options
AFT2020-White light-48V
- Model
- AFT2020-White light-48V
- Voltage
- DC48V
- Power
- 10W/M
- Lumen Output
- 670LM/m
View configuration options

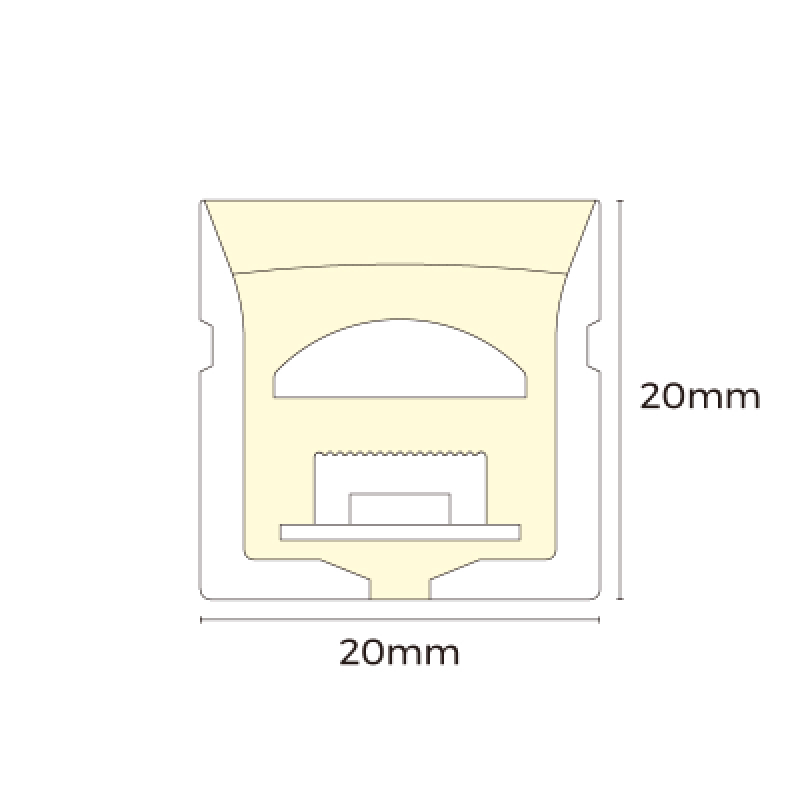

AFT2020-Color light-24V
- Model
- AFT2020-Color light-24V
- Voltage
- DC24V
- Power
- 10W/M
- Lumen Output
- /
View configuration options
AFT2020-RGB-24V
- Model
- AFT2020-RGB-24V
- Voltage
- DC24V
- Power
- 12W/M
- Lumen Output
- 255LM/m
View configuration options
AFT2020-RGBW-24V
- Model
- AFT2020-RGBW-24V
- Voltage
- DC24V
- Power
- 12W/M
- Lumen Output
- 120LM/m
View configuration options
AFT2020-DMX512 White neon light-24V
- Model
- AFT2020-DMX512 White neon light-24V
- Voltage
- DC24V
- Power
- 13.5W/M
- Lumen Output
- 440LM/m
View configuration options
AFT2020-DMX512 RGB neon light-24V
- Model
- AFT2020-DMX512 RGB neon light-24V
- Voltage
- DC24V
- Power
- 13.5W/M
- Lumen Output
- 230LM/m
View configuration options
AFT2020-DMX512 RGBW neon light-24V
- Model
- AFT2020-DMX512 RGBW neon light-24V
- Voltage
- DC24V
- Power
- 16.5W/M
- Lumen Output
- 140LM/m
View configuration options
AFS1224-White light-24V
- Model
- AFS1224-White light-24V
- Voltage
- DC24V
- Power
- 10W/M
- Lumen Output
- 690LM/m
View configuration options
AFS1224-White light-48V
- Model
- AFS1224-White light-48V
- Voltage
- DC48V
- Power
- 10W/M
- Lumen Output
- 690LM/m
View configuration options
AFS1224-Color light-24V
- Model
- AFS1224-Color light-24V
- Voltage
- DC24V
- Power
- 10W/M
- Lumen Output
- /
View configuration options

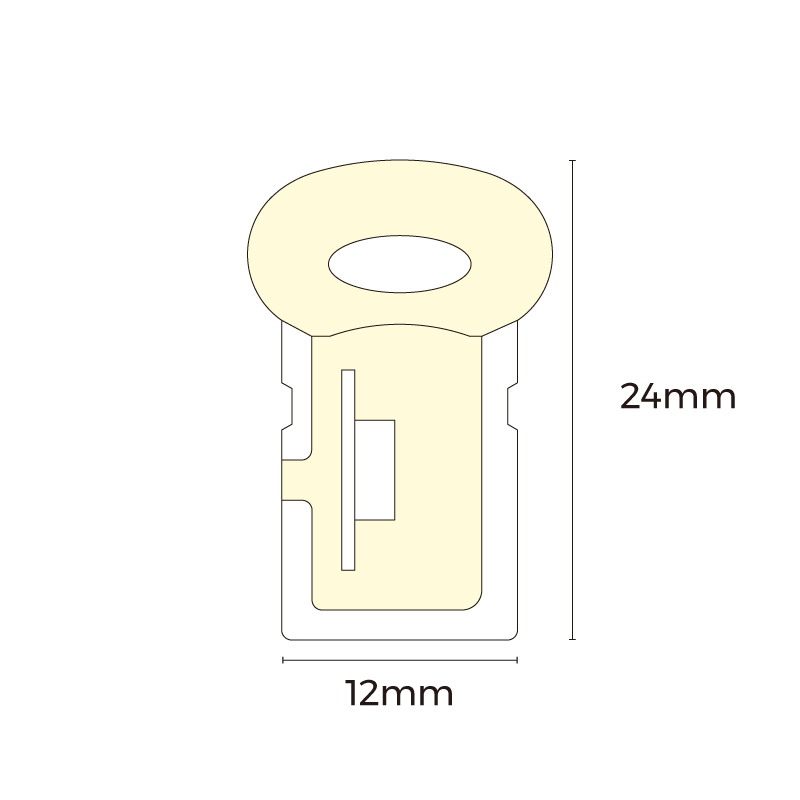

AFS1224-RGB-24V
- Model
- AFS1224-RGB-24V
- Voltage
- DC24V
- Power
- 12W/M
- Lumen Output
- 235LM/m
View configuration options
AFS1224-RGBW-24V
- Model
- AFS1224-RGBW-24V
- Voltage
- DC24V
- Power
- 12W/M
- Lumen Output
- 110LM/m
View configuration options
AFS1224-DMX512 White neon light-24V
- Model
- AFS1224-DMX512 White neon light-24V
- Voltage
- DC24V
- Power
- 13.5W/M
- Lumen Output
- 400LM/m
View configuration options
AFS1224-DMX512 RGB neon light-24V
- Model
- AFS1224-DMX512 RGB neon light-24V
- Voltage
- DC24V
- Power
- 13.5W/M
- Lumen Output
- 215LM/m
View configuration options
AFS1224-DMX512 RGBW neon light-24V
- Model
- AFS1224-DMX512 RGBW neon light-24V
- Voltage
- DC24V
- Power
- 16.5W/M
- Lumen Output
- 120LM/m
View configuration options

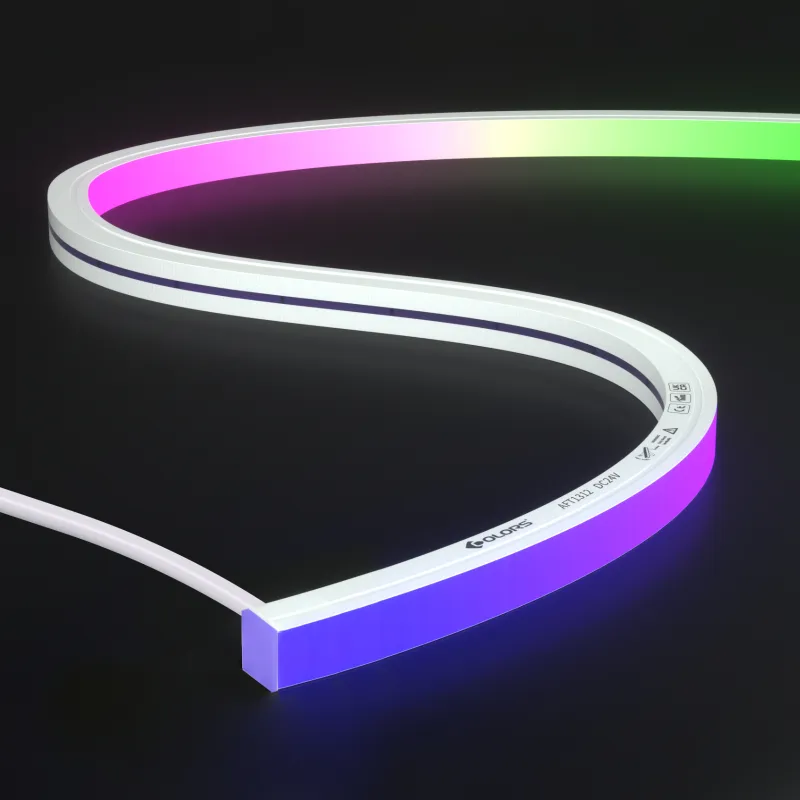

AFT1312-SPI RGBW neon light-24V
- Model
- AFT1312-SPI RGBW neon light-24V
- Voltage
- DC24V
- Power
- 14.5W/M
- Lumen Output
- 175LM/m
View configuration options
AFT1312-RGB-48V
- Model
- AFT1312-RGB-48V
- Voltage
- DC48V
- Power
- 6.3W/M
- Lumen Output
- /
View configuration options

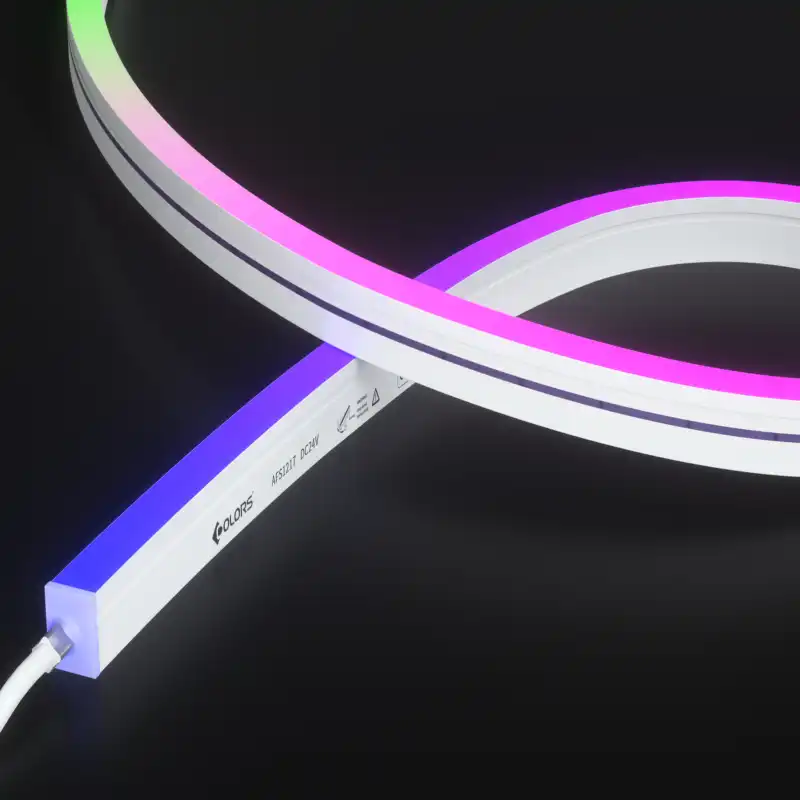

AFS1217-SPI RGBW neon light-24V
- Model
- AFS1217-SPI RGBW neon light-24V
- Voltage
- DC24V
- Power
- 14.5W/M
- Lumen Output
- 110LM/m
View configuration options

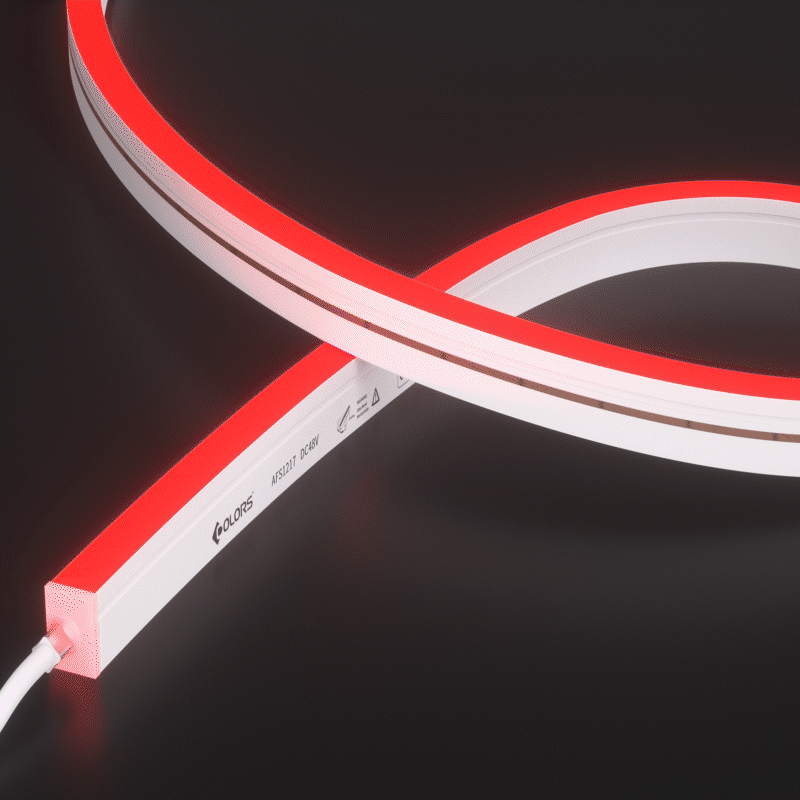

AFS1217-RGB-48V
- Model
- AFS1217-RGB-48V
- Voltage
- DC48V
- Power
- 6.3W/M
- Lumen Output
- /
View configuration options
AFS1217-RGBW-48V
- Model
- AFS1217-RGBW-48V
- Voltage
- DC48V
- Power
- 6.3W/M
- Lumen Output
- 76LM/m
View configuration options

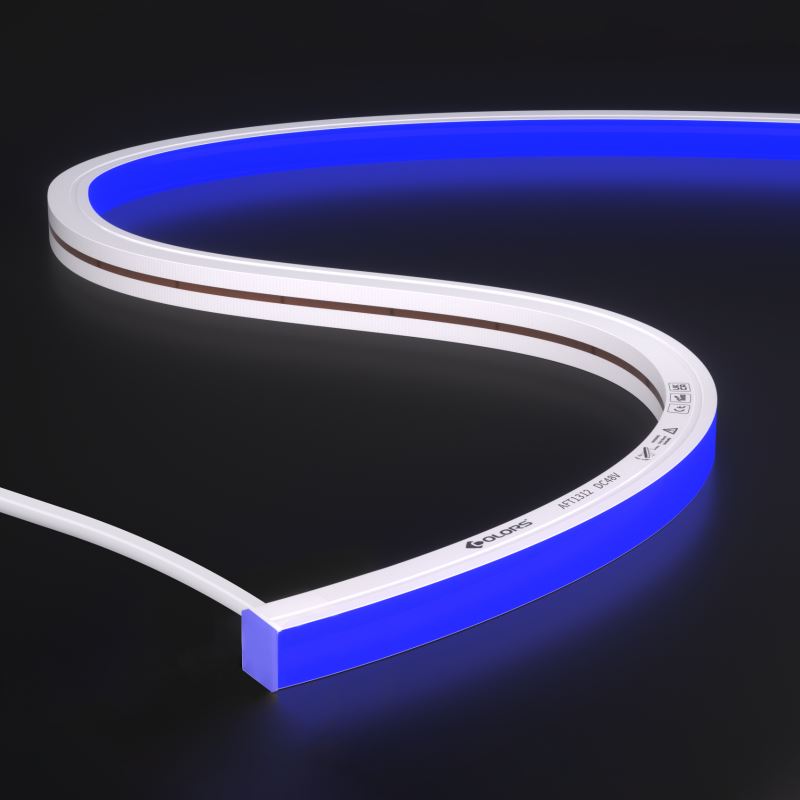

AFT1312-RGBW-48V
- Model
- AFT1312-RGBW-48V
- Voltage
- DC48V
- Power
- 6.3W/M
- Lumen Output
- 90LM/m
View configuration options
AFT1312-White light-48V(50M)
- Model
- AFT1312-White light-48V(50M)
- Voltage
- DC48V
- Power
- 4.4W/M
- Lumen Output
- 400LM/m
View configuration options

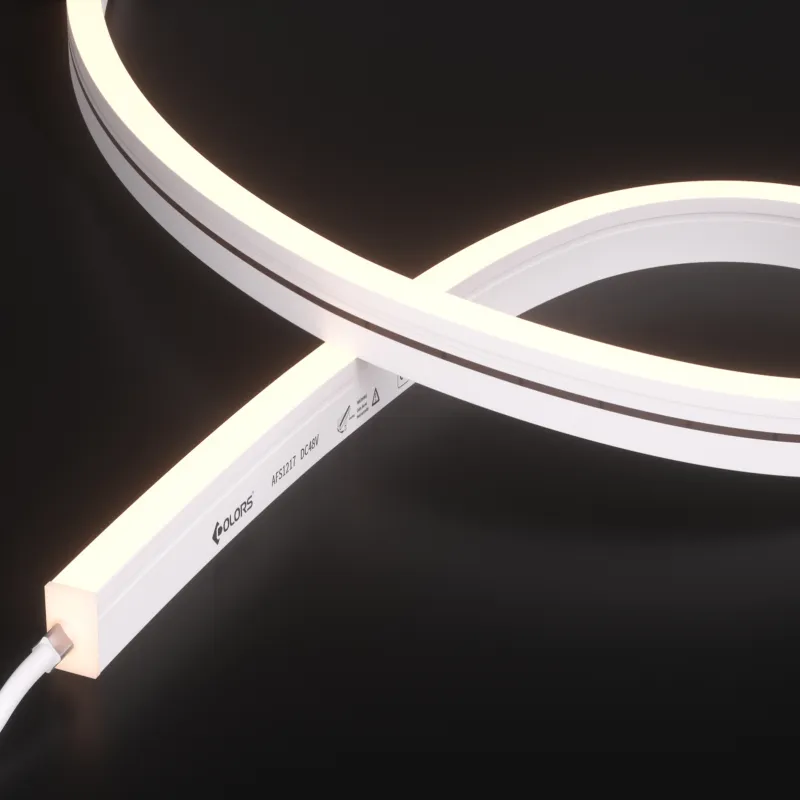

AFS1217-White light-48V(50M)
- Model
- AFS1217-White light-48V(50M)
- Voltage
- DC48V
- Power
- 4.4W/M
- Lumen Output
- 300LM/m
View configuration options
AFT1312-SPI RGB neon light-24V
- Model
- AFT1312-SPI neon light-24V
- Voltage
- DC24V
- Power
- 17.8W/M
- Lumen Output
- 297LM/m
View configuration options
AFS1217-SPI RGB neon light-24V
- Model
- AFS1217-SPI neon light-24V
- LED Density
- 252LEDs/m
- Size
- 12mm*17mm
View configuration options
AFT1615-White light-48V
- Model
- AFT1615-White light-48V
- Voltage
- DC48V
- Power
- 10W/M
- Lumen Output
- 770LM/m
